SPECTRAS

Fastest, Most Advanced Carrier Monitoring Software

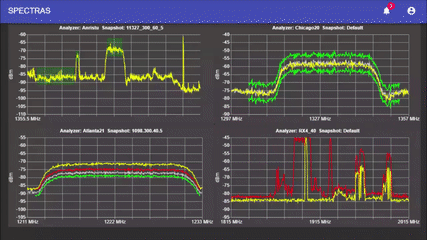

Spectras is the newest browser based carrier monitoring and interference detection platform on the market. It offers the ability to connect and observe hundreds of spectrum analyzers simultaneously over a global network alarming when interference, outages, or other issues.

Using the newest web based technologies, Spectras offers real time monitoring and instant interference detection. Never miss an interference event by setting Spectras to automatically record issues .

Automated Interference Detection and Alarms

  • Quickly configure interference detectors to trigger when thresholds are breached through

    • Monitors​

    • Spectral Masks

    • C/N Detectors

  • Create alarms to alert when issues occur and transmit issues via

    • Emails

    • SNMP Traps

    • Popups

  • Record and replay recorded alarmed events

  • Recall past alarms to deduce trends

History Capture, Data Compartmentalization, and User Management

  • Configure Spectras to record traces, then replay based on

    • Alarming events

    • Continuous

    • On interval

  • Control privileges to analyzers through LP Technologies one of a kind data compartmentalization

  • Assign roles to staff to manage access of the Spectras System

One Platform, Many Solutions

Spectras was created to be an all in one software platform. Pick the type of monitoring required, and pay for only what is needed. The following modules are available for Spectras, each at a different price point and feature list:

  • BASE

  • GEO

  • LEO

  • Analyzer Time Sharing

Spectras FAQ

What Spectrum Analyzers are Compataible With Spectras


LPT-3000 LPT-6000 LPT-X3000 LPT-3000R 4 port LPT-3000R 16 port LPT-3000RX4 4 port LPT-3000RX4 8 port LPT-3000RX4 16 port LPT-3000RX4 CID LPT-3000RX4 DNC Anritsu MS27013A




What are the Hardware Requirements for Spectras


RAM: 4 GB Storage: 100 GB CPU: Intel Core I3 2000 series




What Browsers are Compatiable with Spectras


Edge Firefox Chrome
